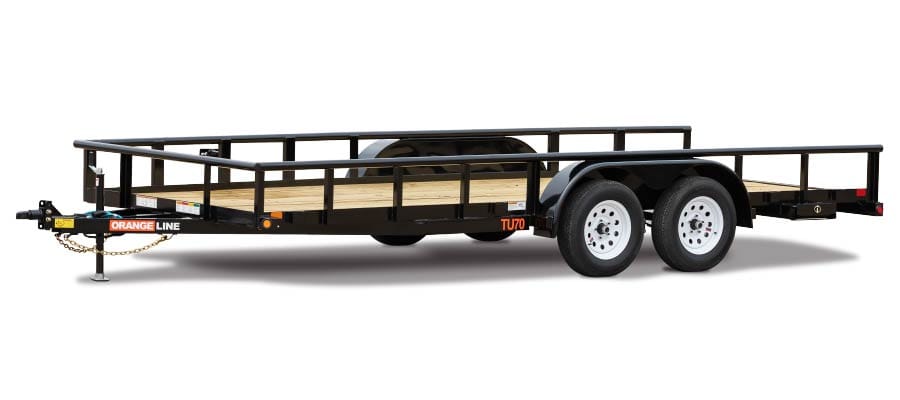

Orange Line TU70 Tandem-Axle, Pipe Top Utility Trailer
Call for Pricing
Price
Make:
Orange Line
Model:
TU70 20"
Category:
New, Trailer
| Length | 18’ | 20’ |
| Width | 83” |
| GVWR Rating | 7,000# |
| Empty Weight | 2,060# | 2,140# |
| Payload Weight | 4,940# | 4,860# |
| Frame | 4” x 3” x 1/4” Angle |
| Cross Members | 3” x 2” x 3/16” Angle |
| Top Rail | 2-3/8″ OD Pipe Top Rail |
| Uprights | 3″ x 2″ x 3/16″ Angle |
| Coupler | Adjustable, 2″ Forged Coupler |
| Jack | 2,000# Top Wind, Set-Back Jack w/ Removable Sand Foot |
| Fenders | 9” x 72” Rolled Steel w/ Back |
| Axles | Dexter Brand, 3,500# Axles w/ EZ Lube Hubs |
| Brakes | Nev-R-Adjust Electric Brakes on All Hubs |
| Suspension | Multi-Leaf Spring w/ Equalizer |
| Tires | ST205/75R-15 Load Range C |
| Wheels | 15” x 5”; White Mod, 5 on 5 Bolt Pattern |
| Decking | 2” Treated Pine |
| Lights | Recessed, L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Electric Plug | 7-Way RV Style |
| Wiring | Protected Wiring Package |
| Ramps | 4’ Slide-In Ramps (Side Pockets) |
| Cargo Control | (6) Tie Down Pockets Along Sides |
